DSO138 [3]: Acrylic case

Last step in the oscilloscope build: the acrylic case!

DSO138 [3]: Acrylic case

After assembling and calibrating the DSO138, I build the acrylic case.

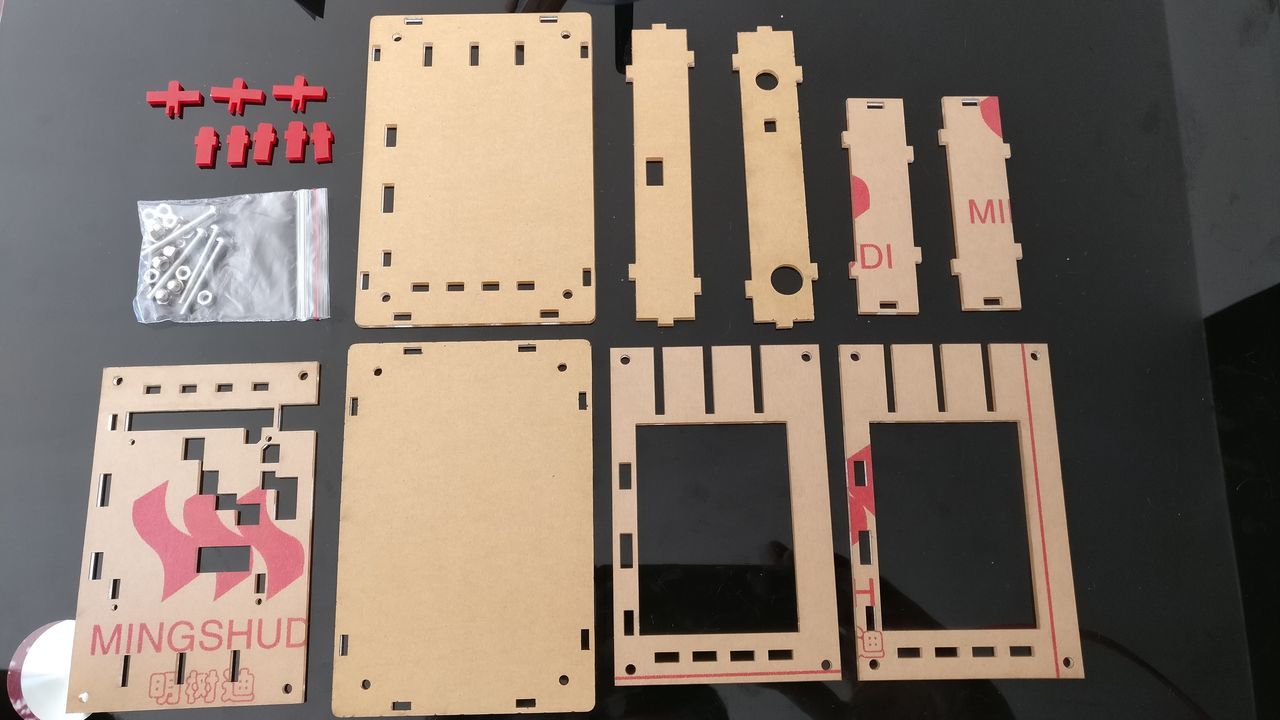

The case kit is composed by:

  • 4 big screws, 8 nuts and 4 finishing nuts
  • 4 small screws, 4 nuts
  • 3 sliding buttons
  • 5 pushing buttons

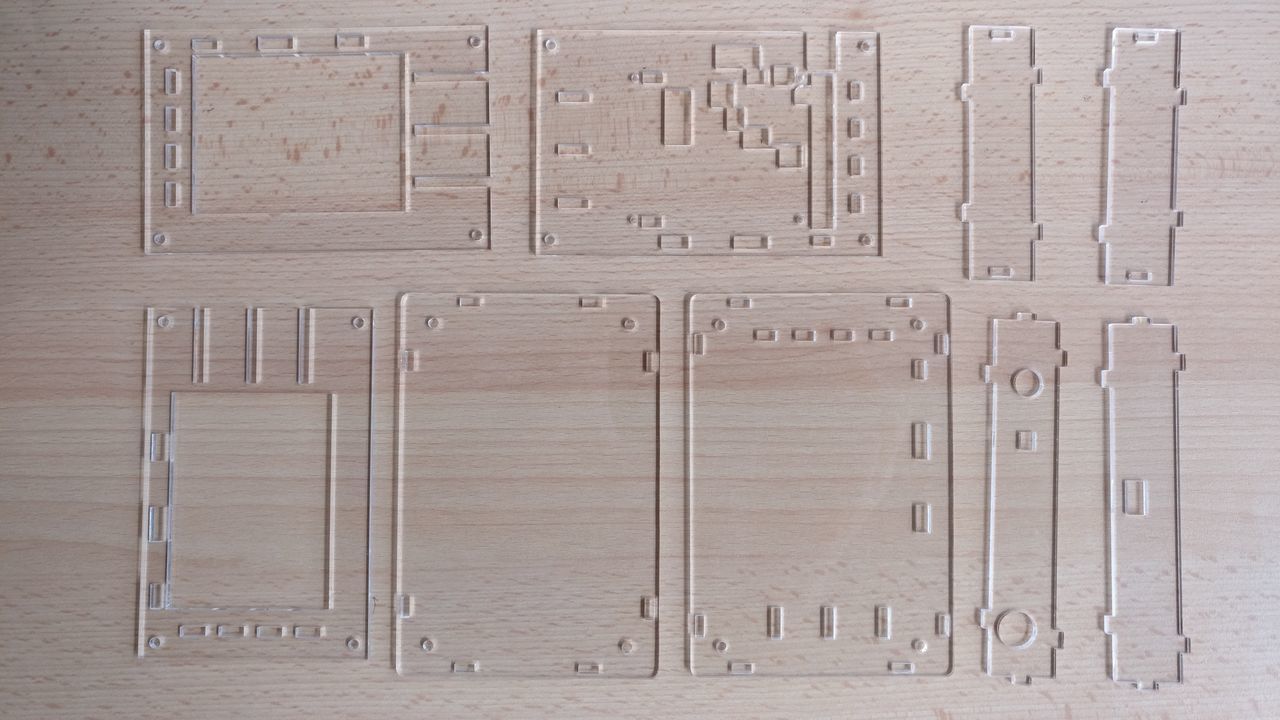

  • 9 plastic parts

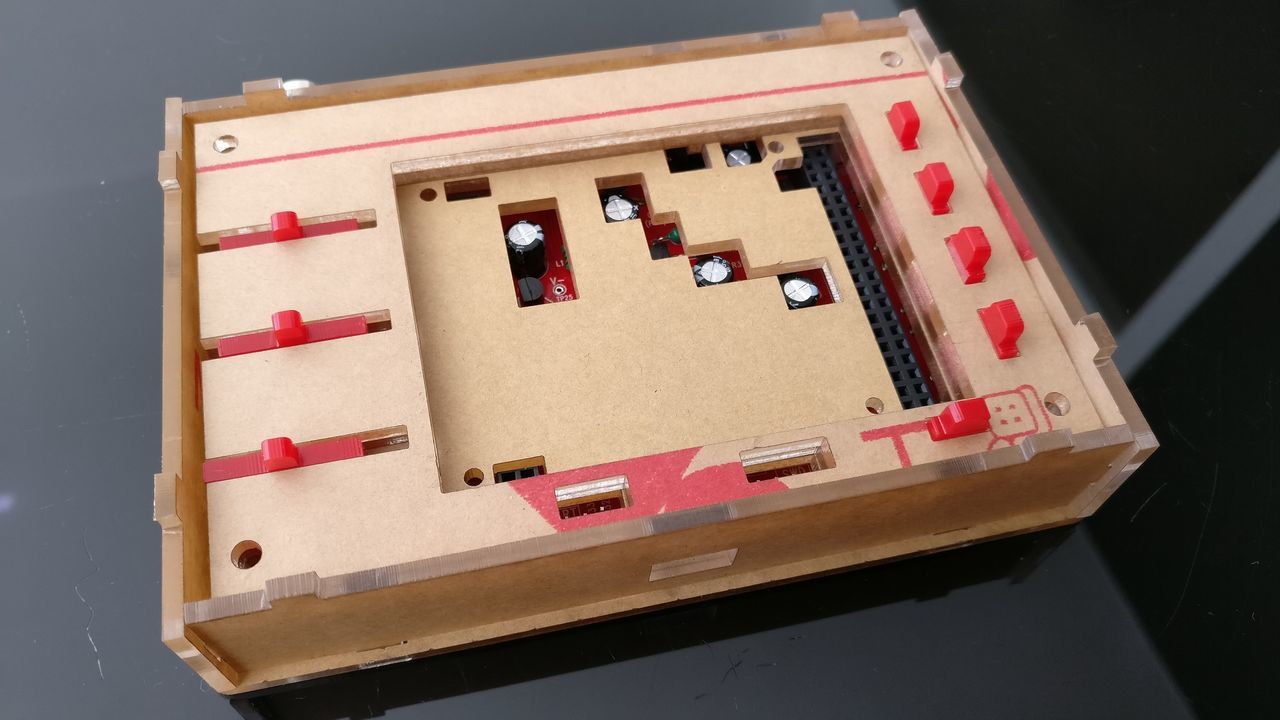

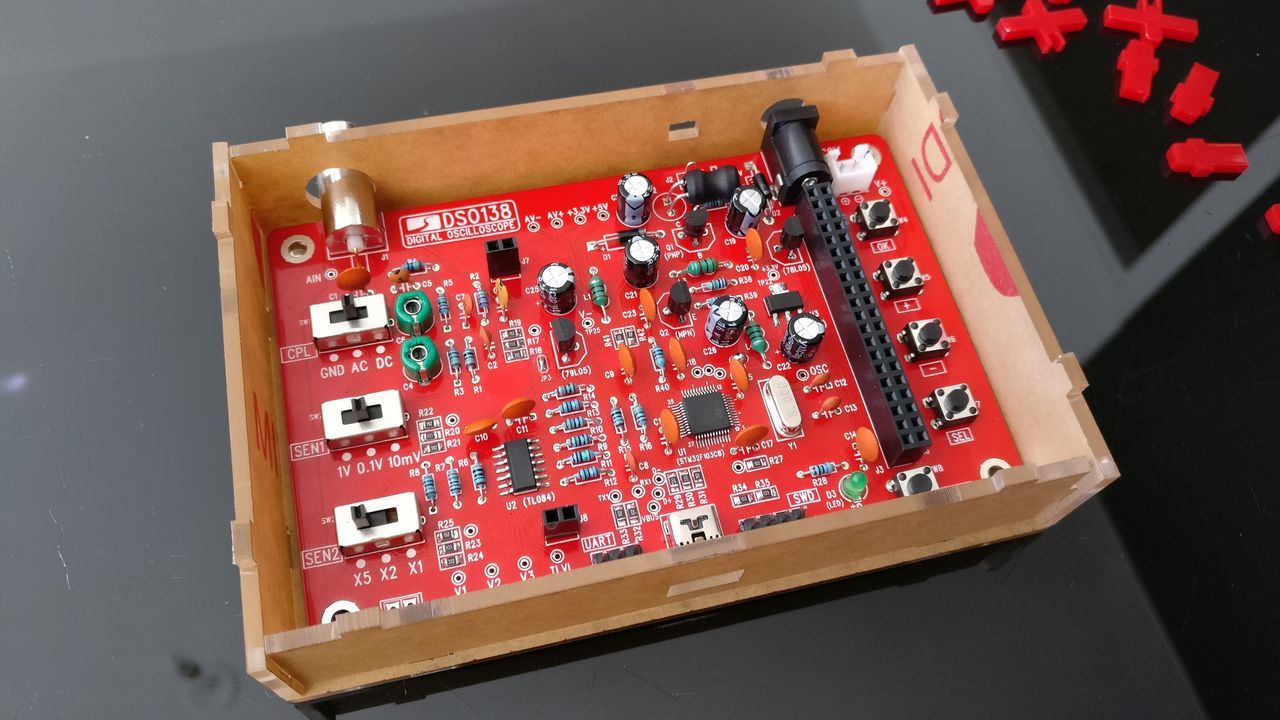

First try

I quickly tried to assemble it to understand the role of each part.

Step by step

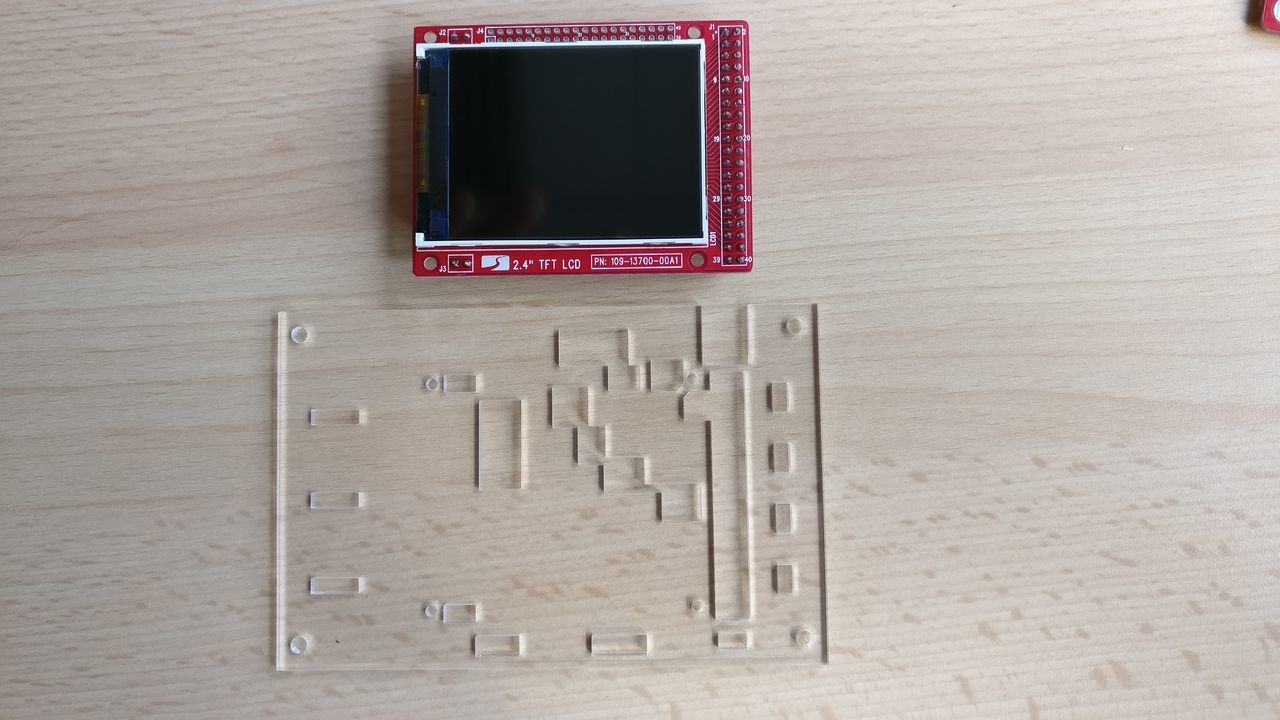

Remove the protection film

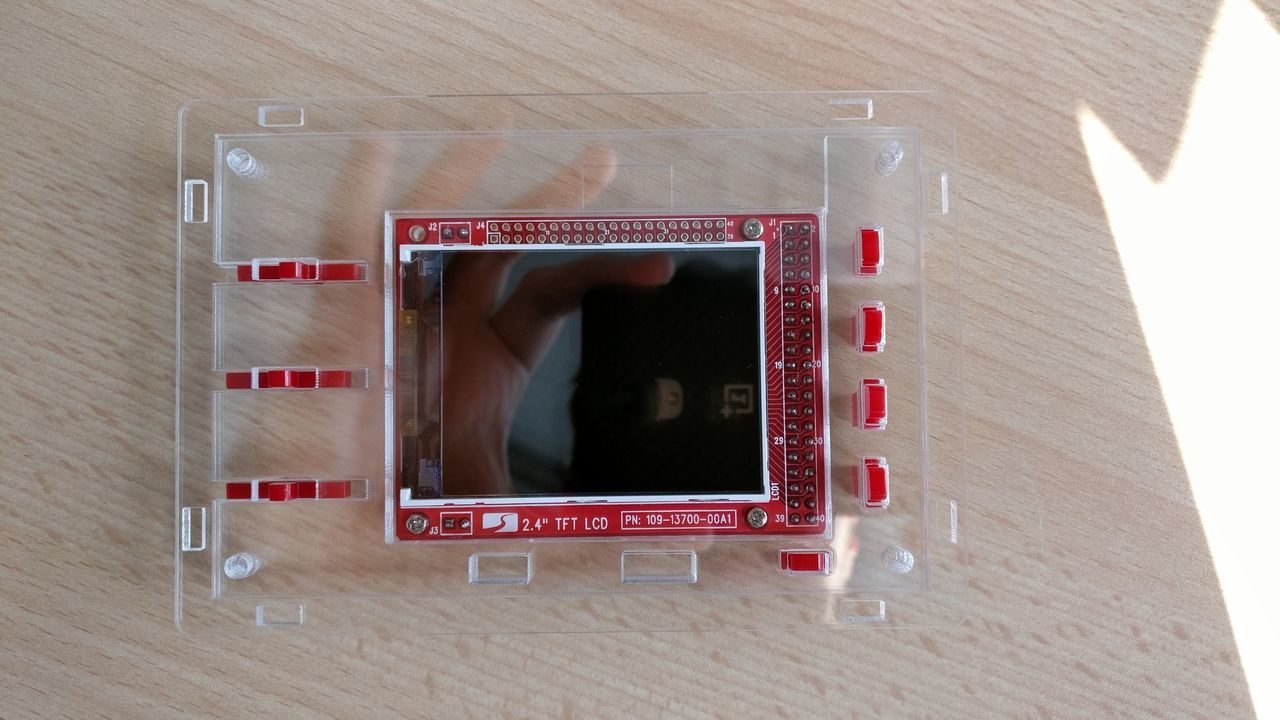

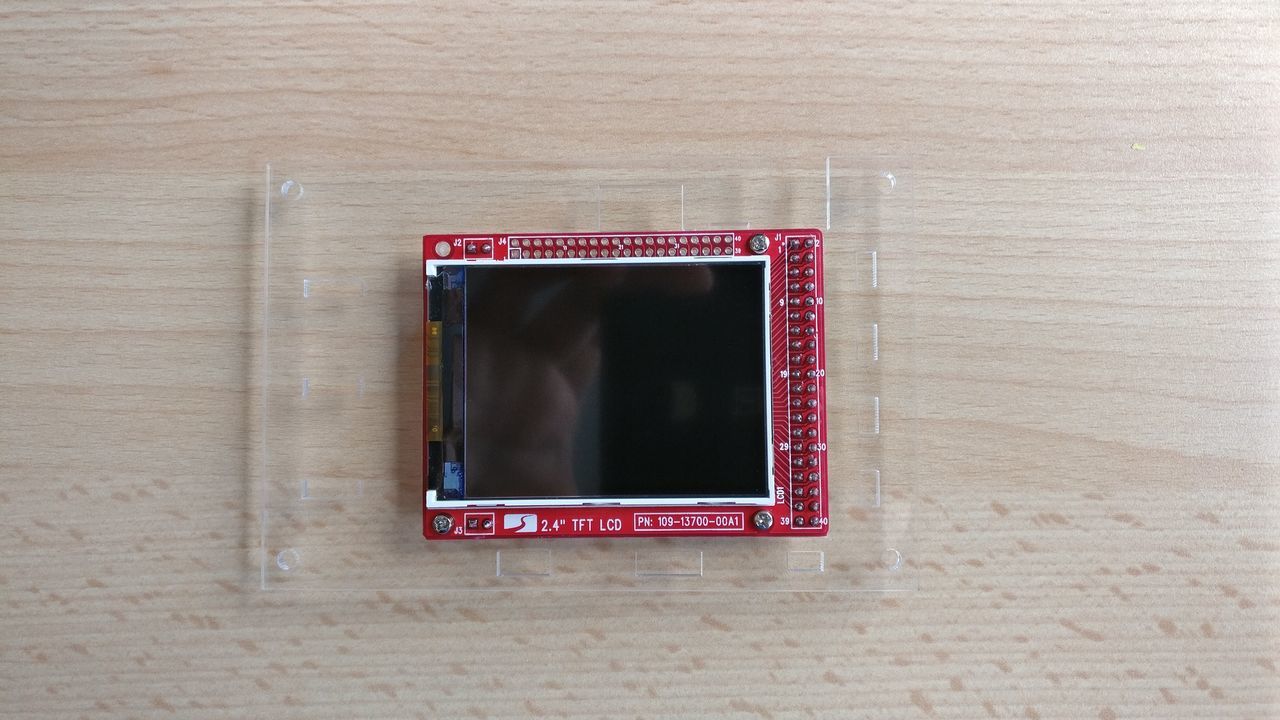

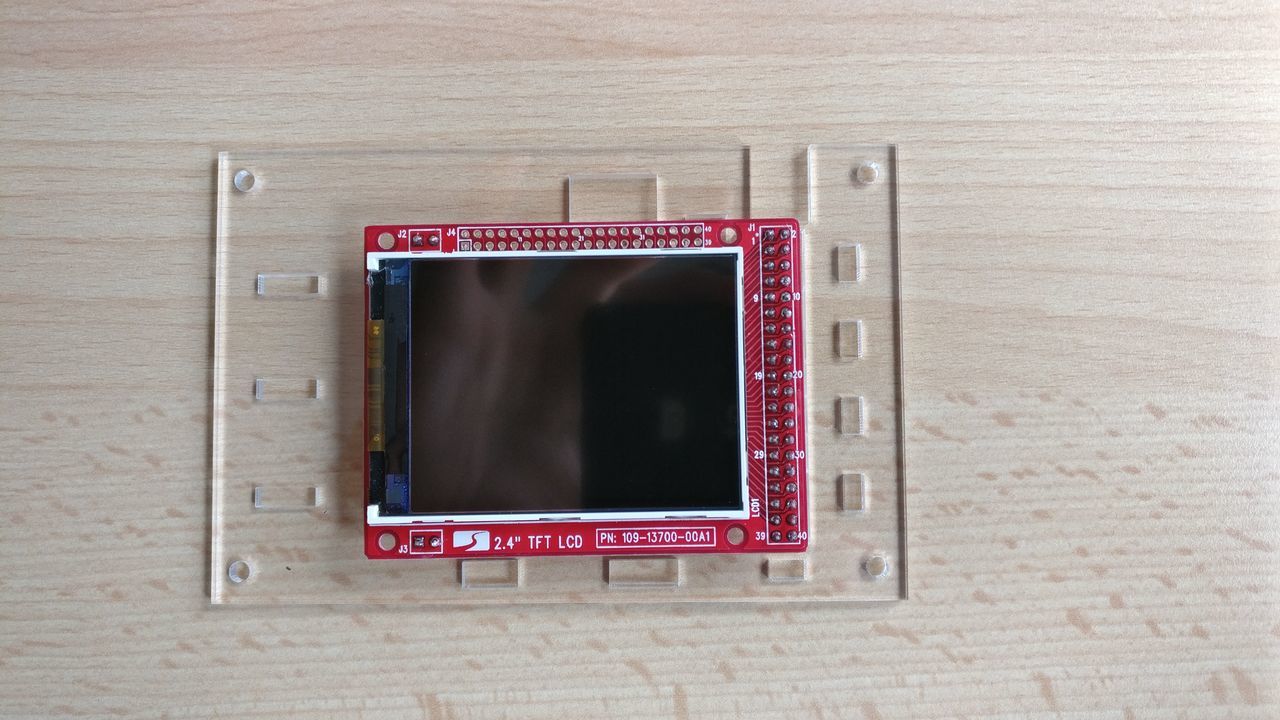

Attach the screen to the first piece

Remark: One of my screws was in bad shape. I didn't used it.

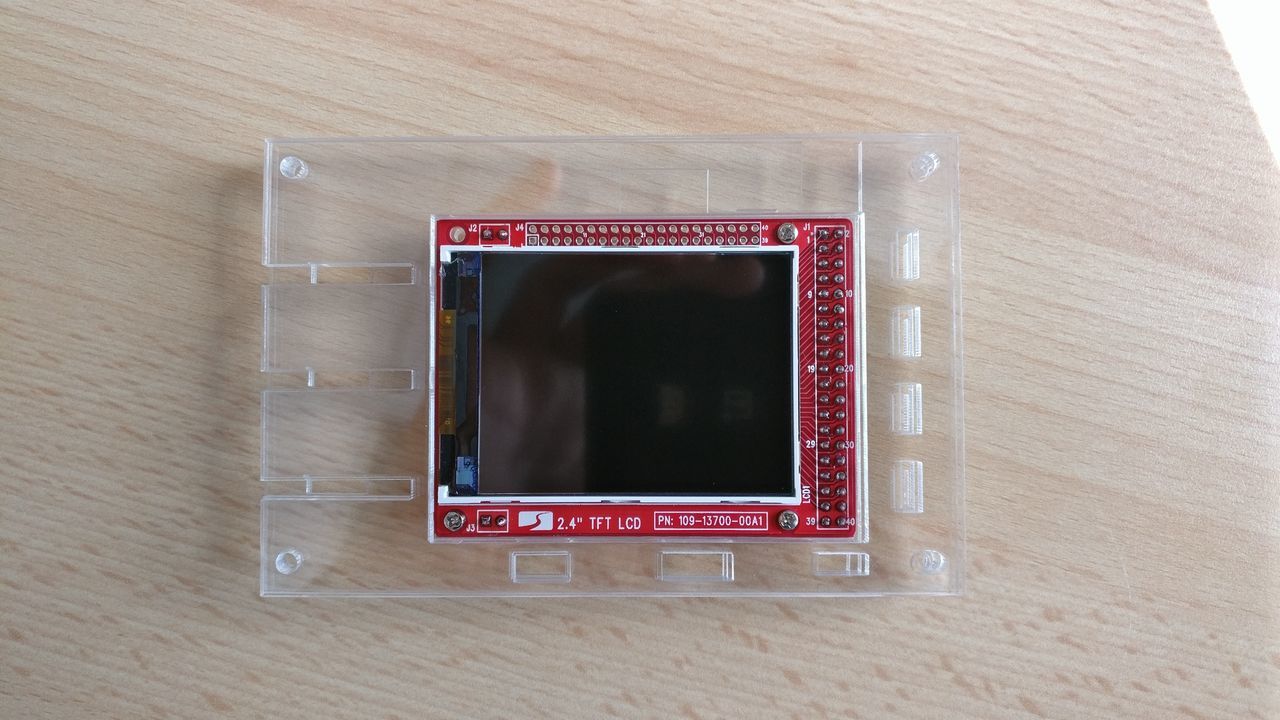

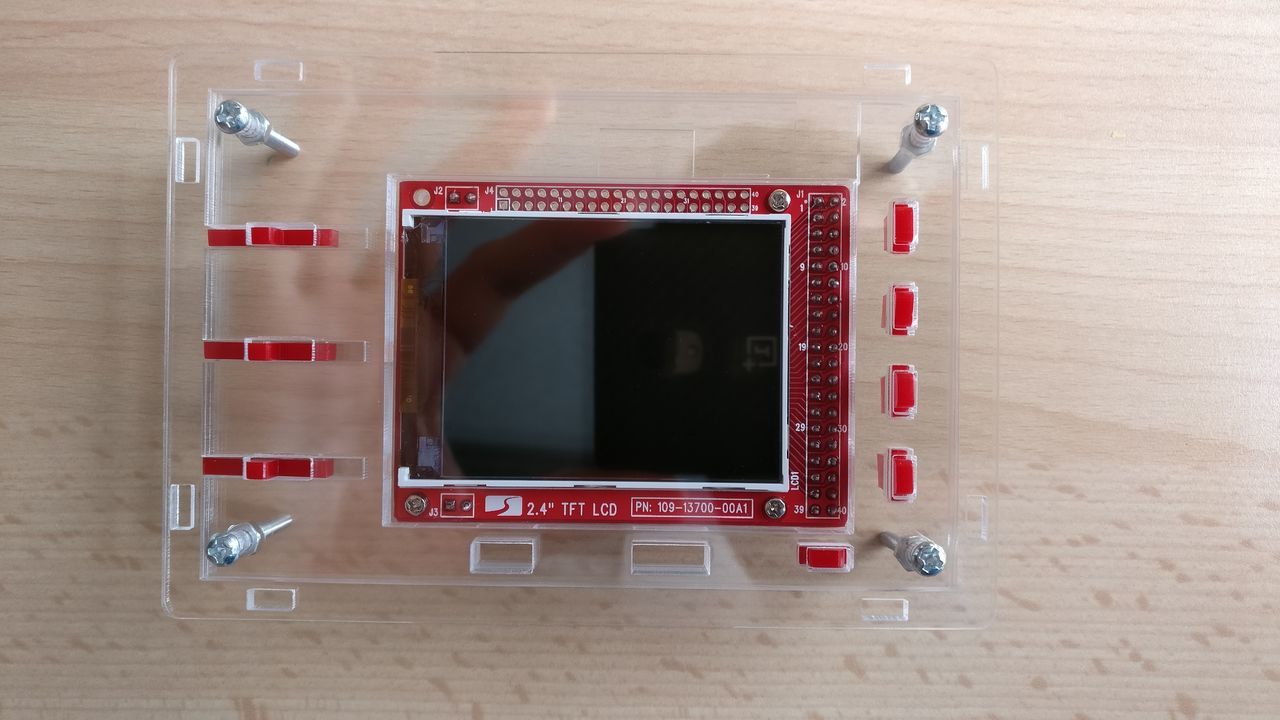

Overlay two pieces


Top piece

Main screws

Sides (x3)

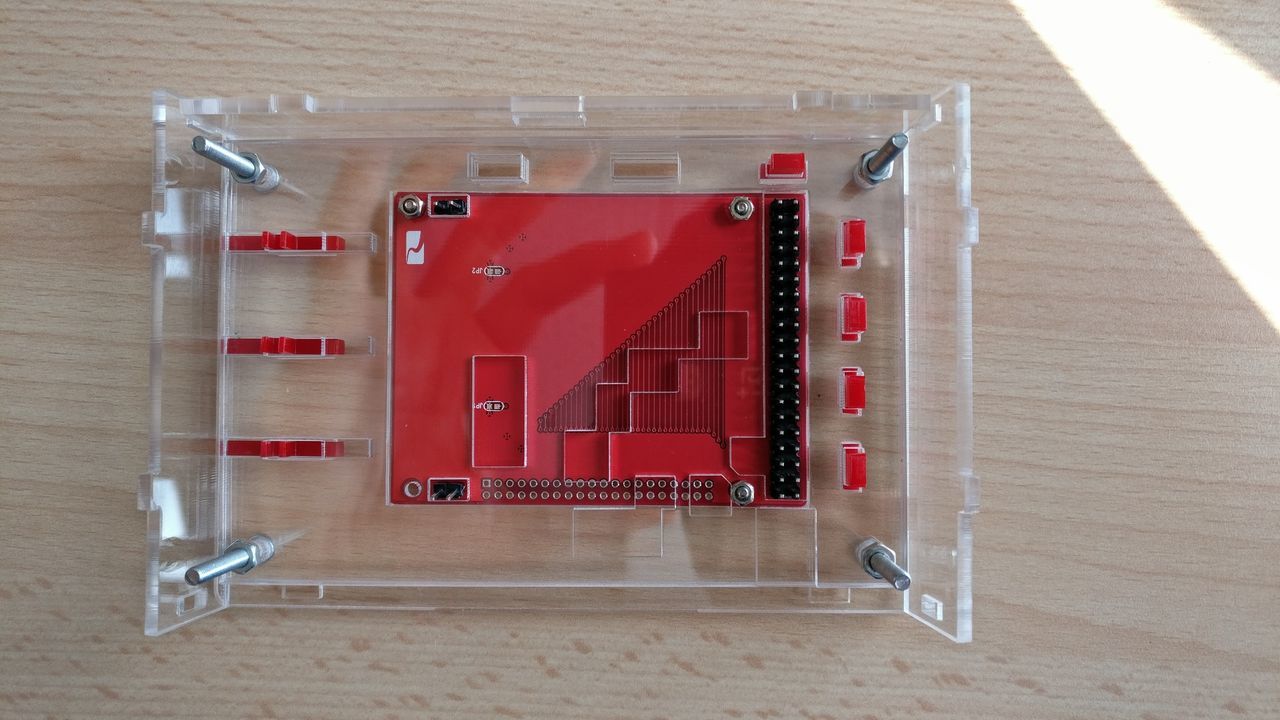

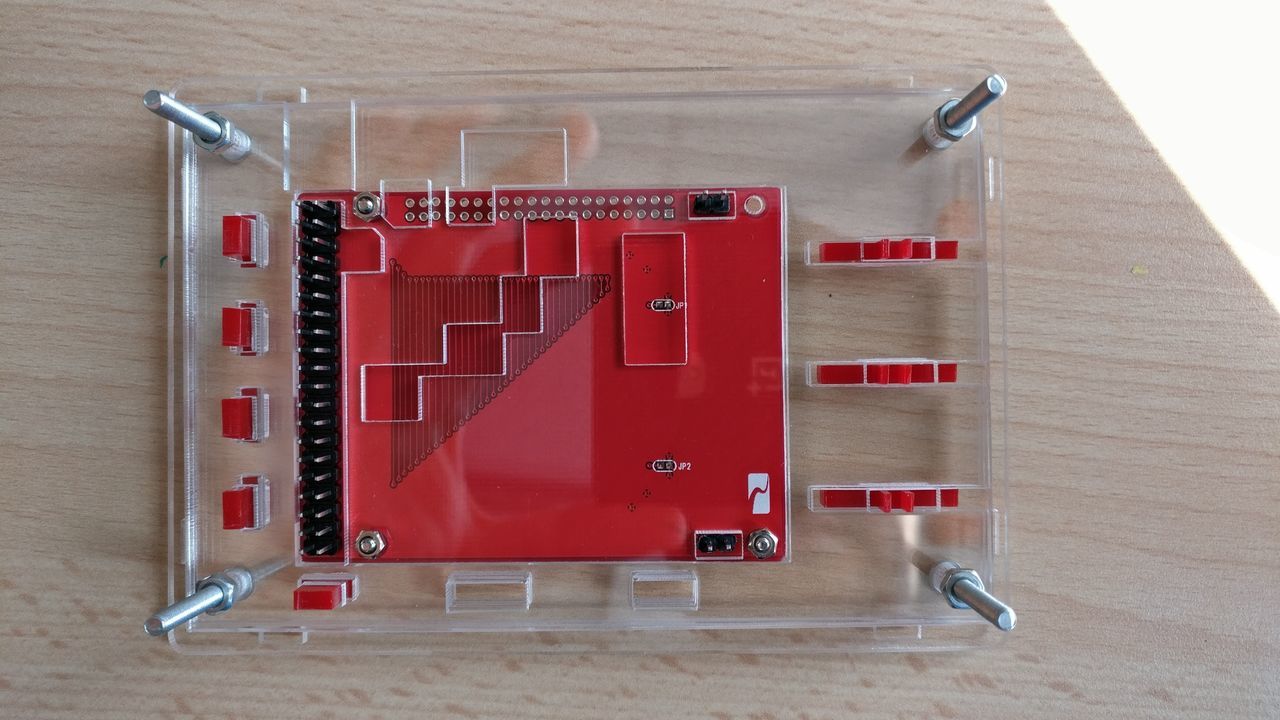

Main board + one side

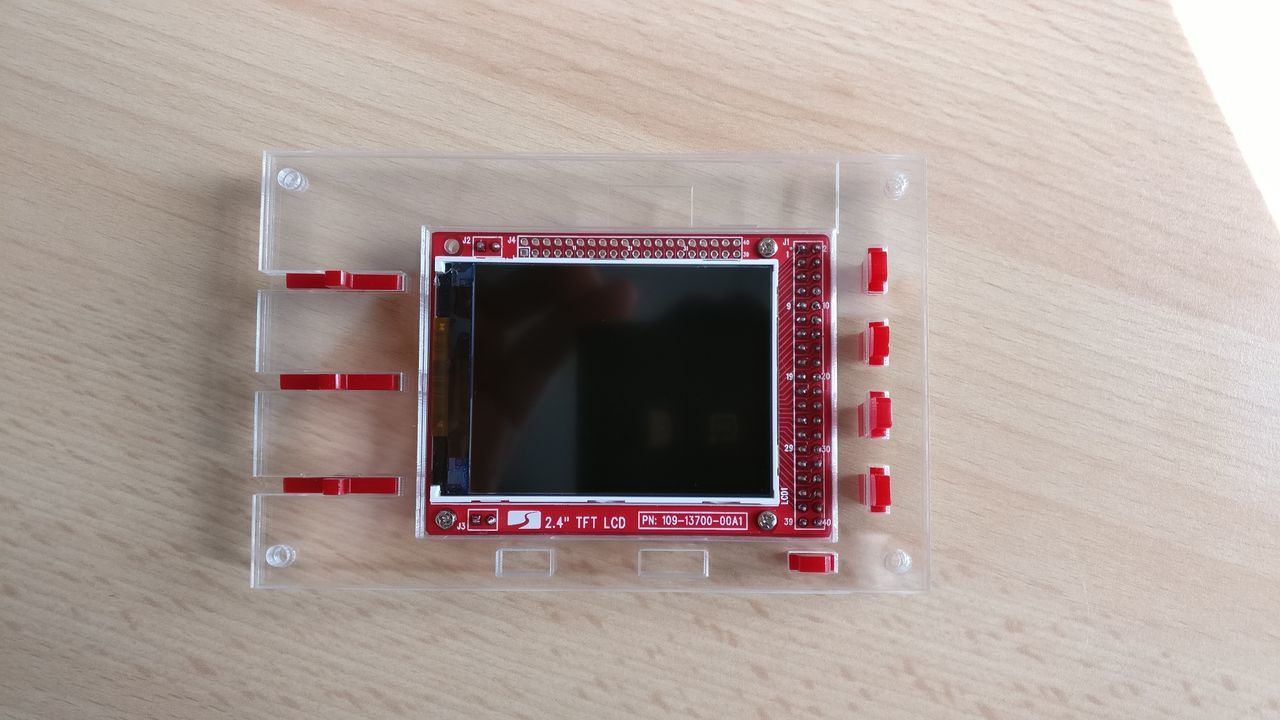

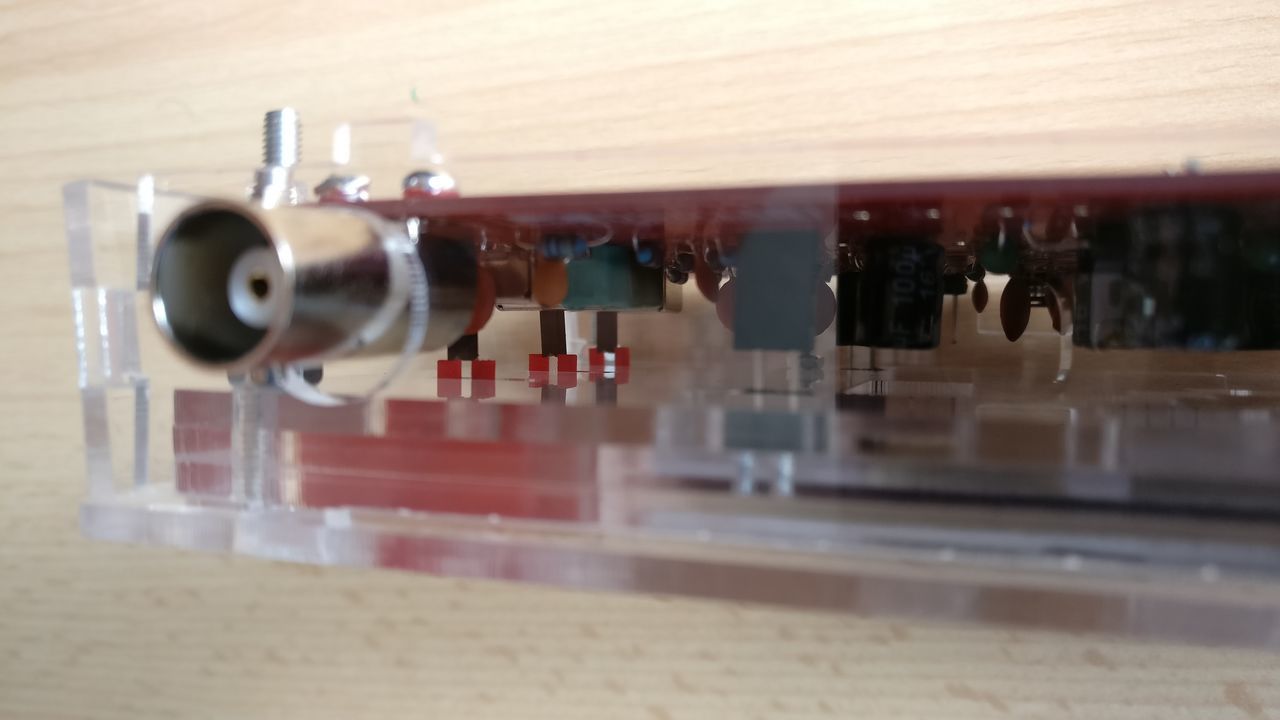

Align the sliding buttons.

Add the nuts

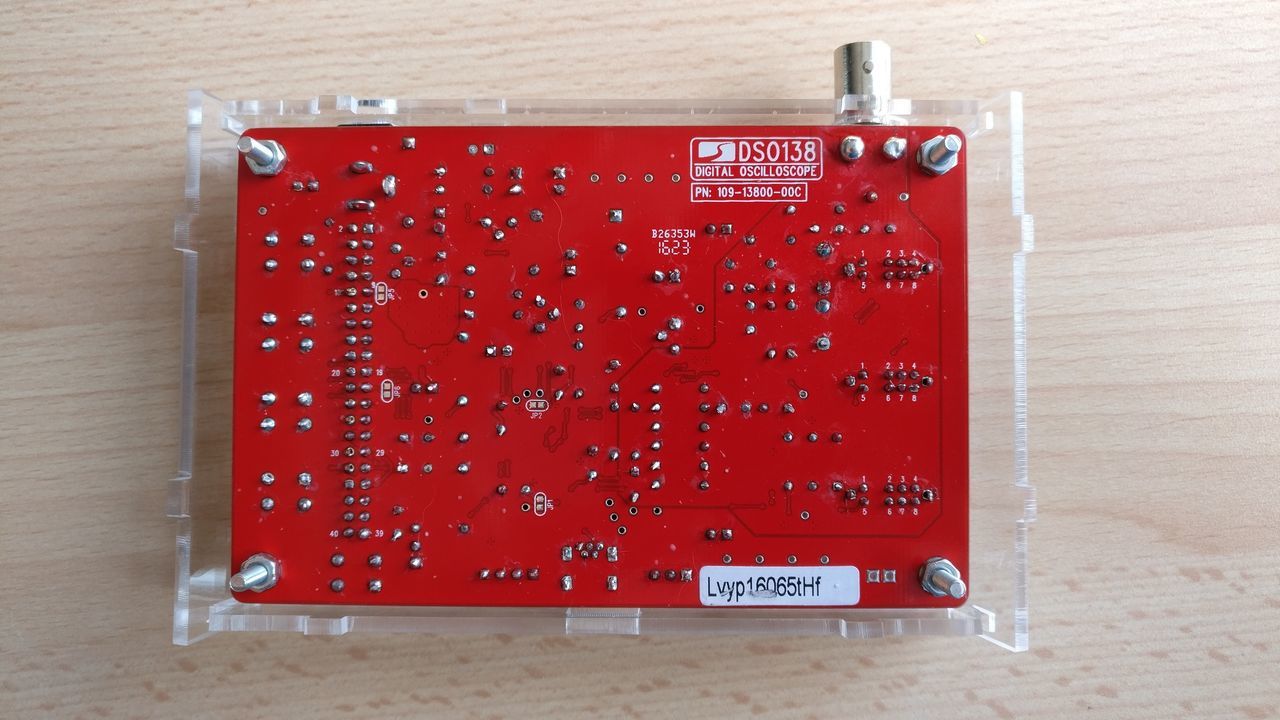

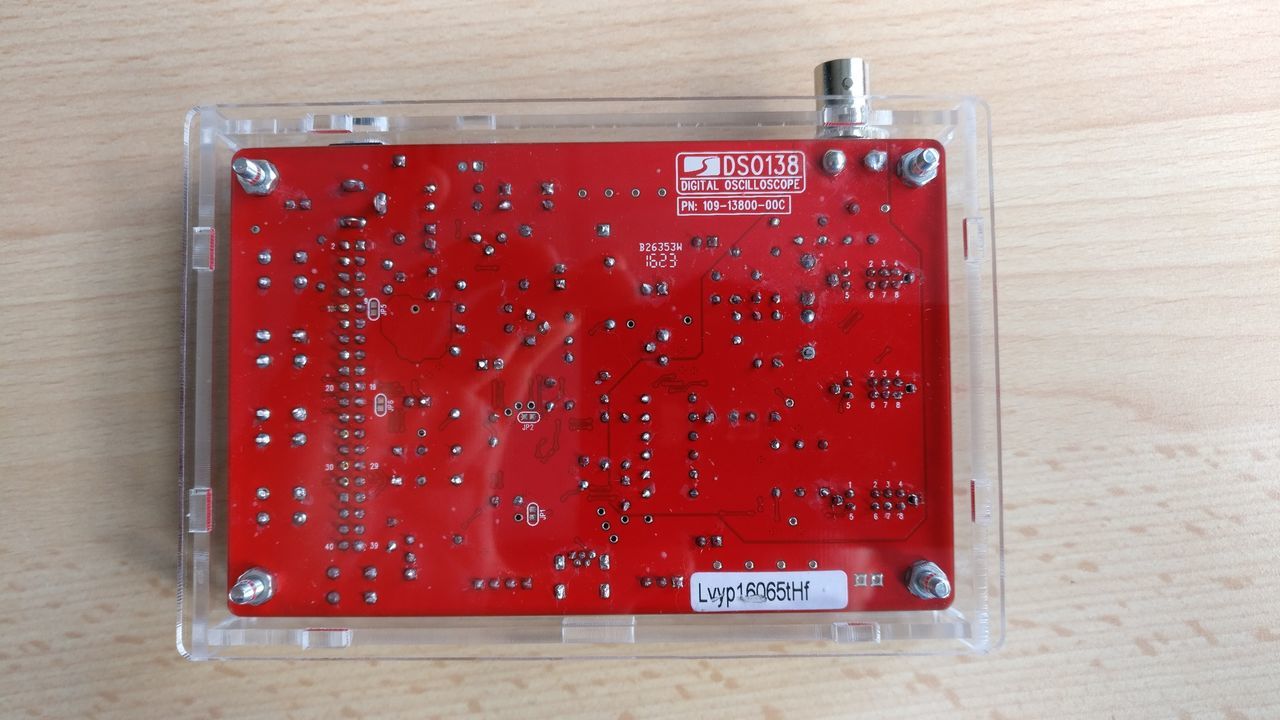

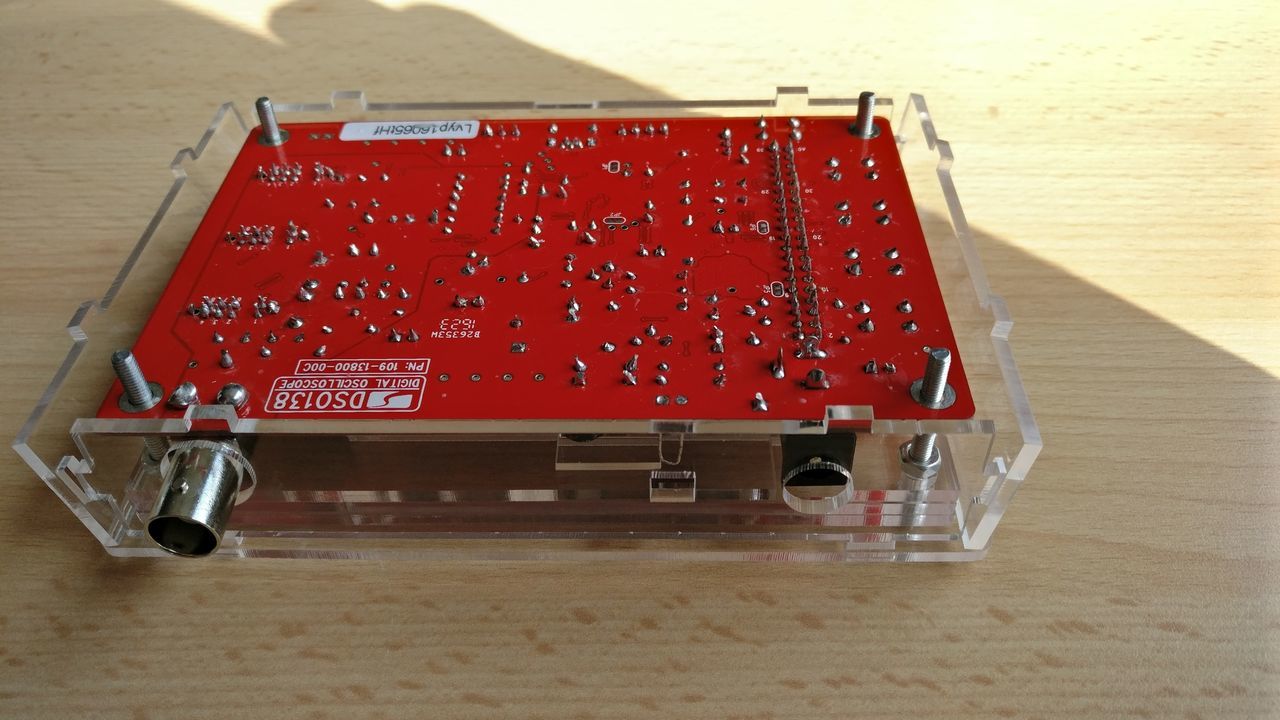

Bottom layer

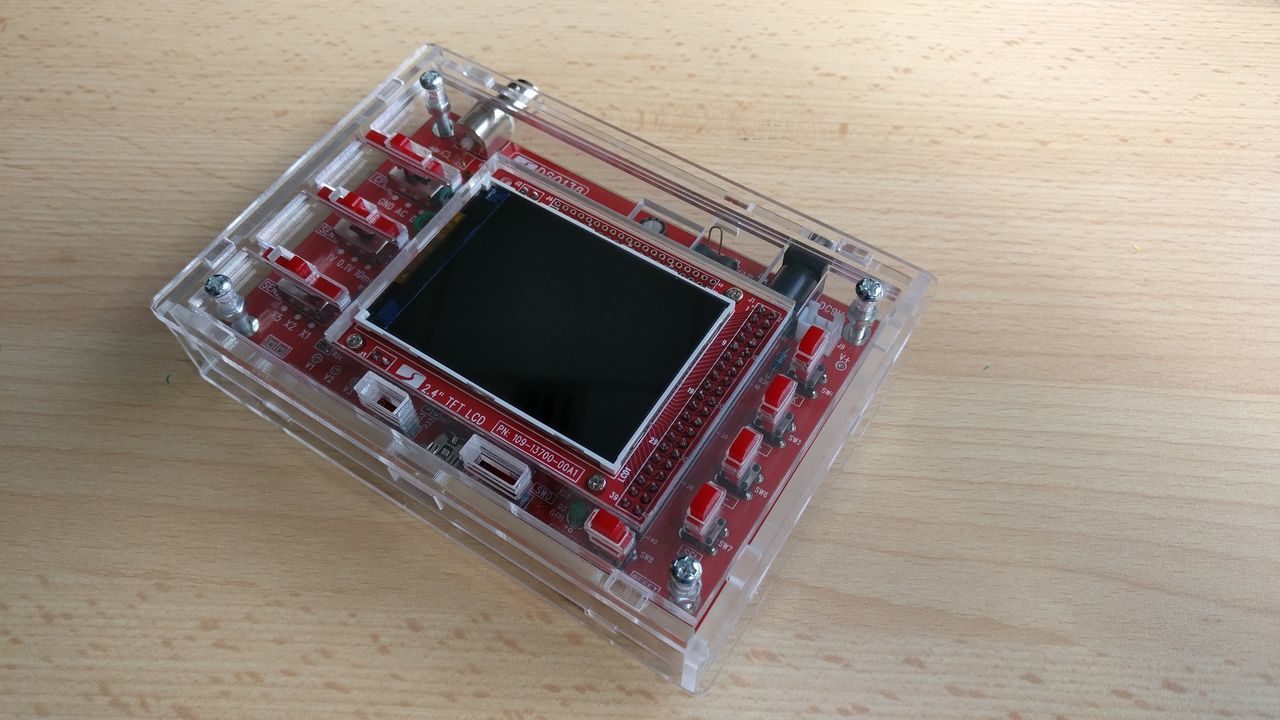

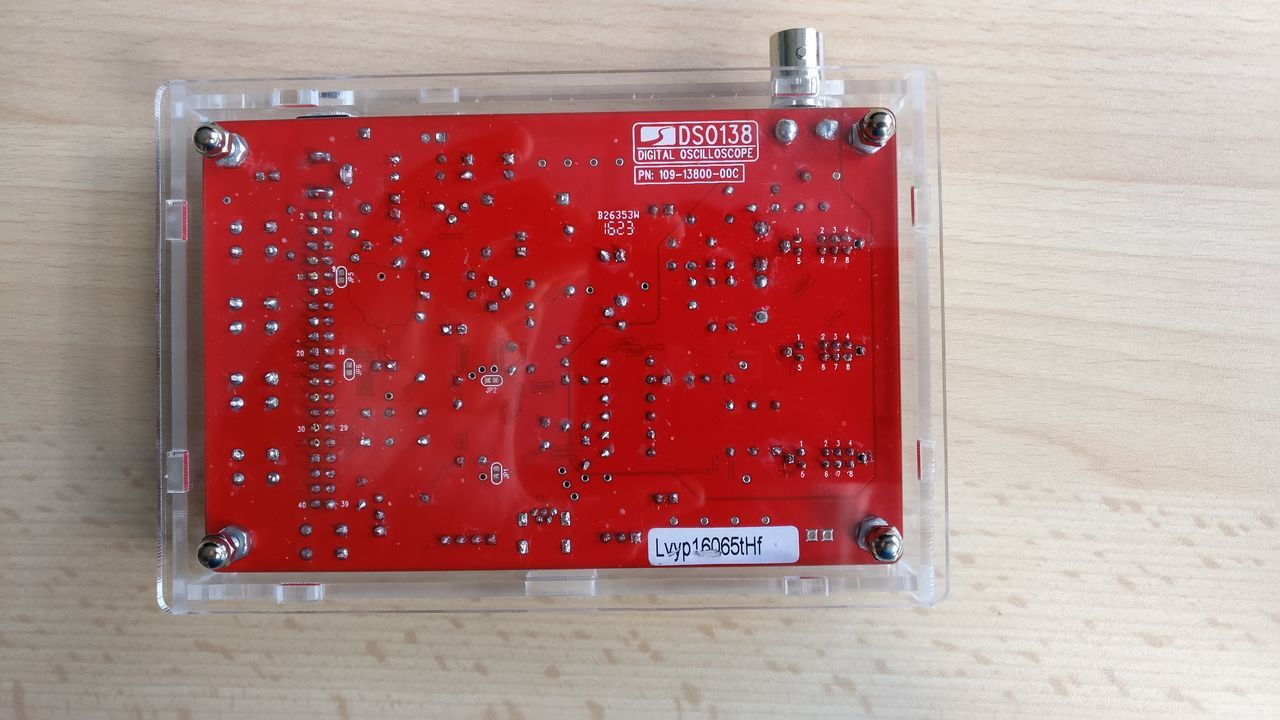

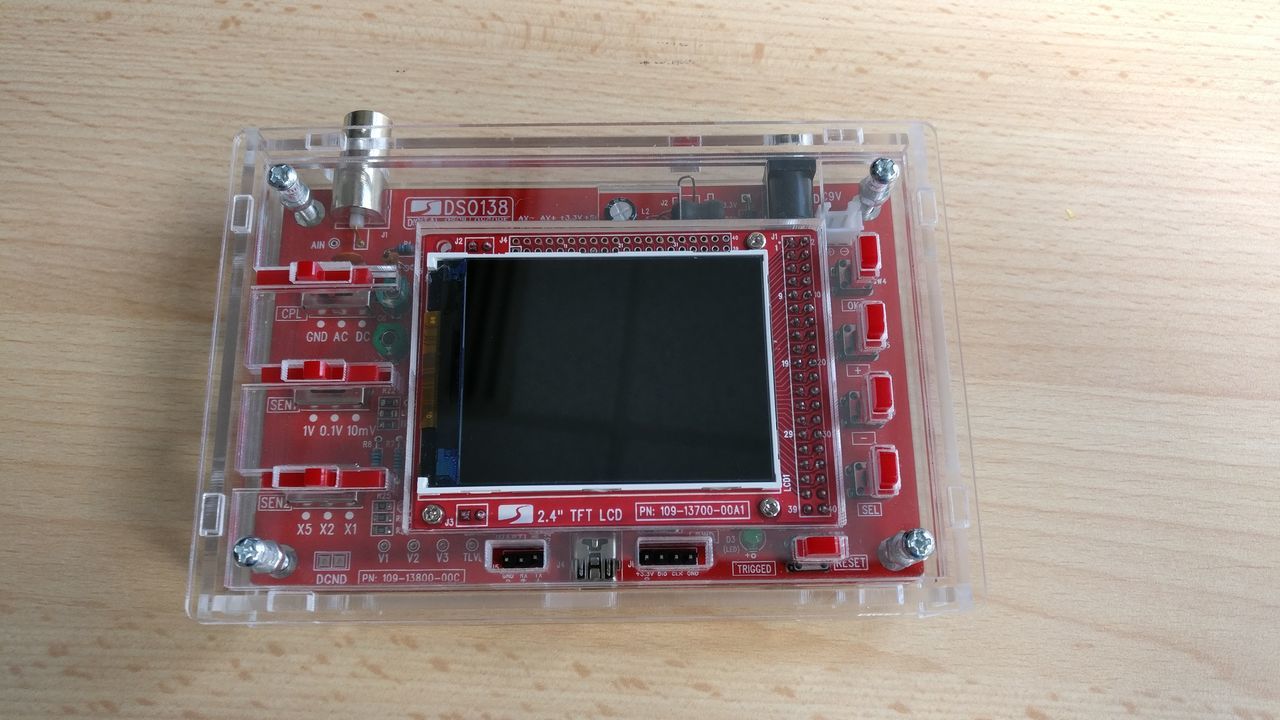

Add the finishing nuts.
